उत्पाद का विवरण
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: zheheng
प्रमाणन: ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81
मॉडल संख्या: 19 मिमी
दस्तावेज़: उत्पाद पुस्तिका पीडीएफ
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा: बातचीत योग्य
मूल्य: बातचीत योग्य
पैकेजिंग विवरण: जलरोधक सामग्री, या लकड़ी के टोकरे पैकिंग के साथ बंडलों में
प्रसव के समय: 30 दिन
भुगतान शर्तें: एल/सी, टी/टी, डी/ए, डी/पी
आपूर्ति की क्षमता: 50 टन/30 दिन
सामग्री: |
इनकोलॉय मिश्र धातु 800/एन08800/1.4876 |
मानक: |
ए240/बी409/ए358 |
प्रकार: |
निर्बाध |
तकनीक: |
कोल्ड ड्रॉइंग |
व्यापार के नियम: |
एफओबी निंगबो |
प्रमाण पत्र: |
पीईडी 97/23/ईसी |
सामग्री: |
इनकोलॉय मिश्र धातु 800/एन08800/1.4876 |
मानक: |
ए240/बी409/ए358 |
प्रकार: |
निर्बाध |
तकनीक: |
कोल्ड ड्रॉइंग |
व्यापार के नियम: |
एफओबी निंगबो |
प्रमाण पत्र: |
पीईडी 97/23/ईसी |
Alloy 800 / N08800 /1.4876 / X10NiCrAlTi32-20 incoloy Nickel Alloy Pipe / A240 / B409 / A358
specialized in stainless seamless steel pipes & fittings.There are various kinds of materials:Alloy 800,800H,800HT,600,C276,601,625,825,Alloy 22,Alloy C4ect. Or Customized, we could produce as customers' different requirements and according to the standards such as ASTM A240, B409 / A358,B514, B515 ,B168 / B516, B517,B575 / B619, B626,B168,ect.
Complementary description:
| Package: | Each tube in a plastic bag with size label outside and pack in small bundles or according to customer request |
| Lead Time: | 7-10days for one FCL Or according to order list detail |
| Payment: | A: 100% T/T advance. ( For small order.) B: 30% T/T and balance against copy of documents. C: 30% T/T advance, balance L/C at sight D: 30% T/T , balance L/C usance E: 100% L/C usance. F: 100% L/C at sight. |
| Sample: | we could offer the sample for free charge but do not pay the cost of freight. |
Incoloy 800 Chemical composition:
| Grade | Ni | Cr | Fe | C | Mn | Si | S | P | Cu | Al | Ti | |
| % | ||||||||||||
| 800 | Min | 30 | 19 | Bal | 0.15 | 0.15 | ||||||
| Max | 35 | 23 | 0.1 | 1.5 | 1 | 0.015 | 0.03 | 0.75 | 0.6 | 0.6 |
Incoloy 800 Pysical properties:
| Alloy state | Tensile strength | Yield strength | Elongation |
| Rm N/mm² | R P0. 2N/mm² | A 5 % | |
| 800 | 520 | 205 | 30 |
Heat Treatment Assurance
A full-automatic natural gas furnace with 24 meters in length.The real temperature tolerance could be within 10℃.
1 .The Organic chemical process parts contains chloride, especially in the use of acid chloride catalyst.
2. The digester and bleacherin the use of paper pulp and paper making industry.
3. Absorption tower, re-heater,gas import board, fan, blender, fair water fin, flue and so on for using in flue gas desulfurization system.
4. The equipment and parts in the use of acidic gas environments.
5. Acetic acid and anhydride reaction generator
6. Sulfur acid cooling

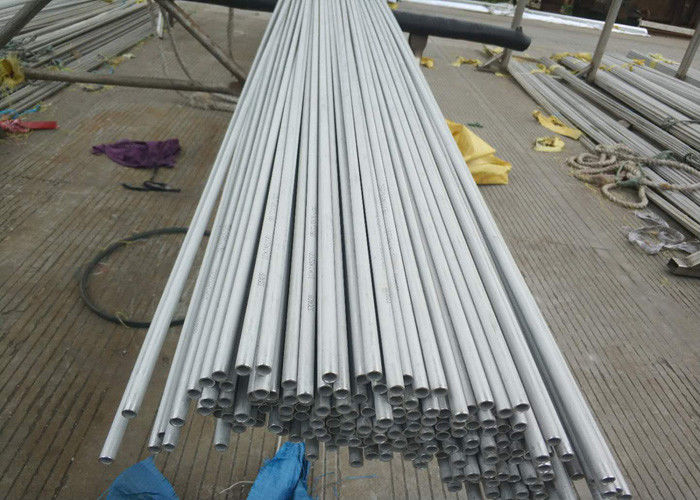

Product show:
